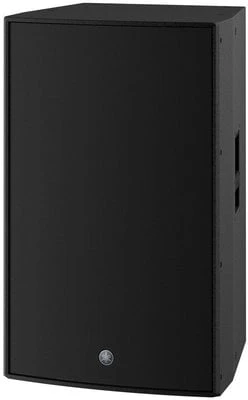

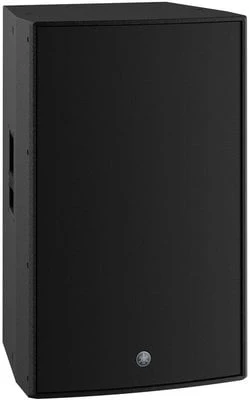

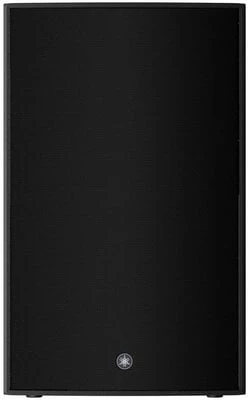

Yamaha DZR315 Active Loudspeaker

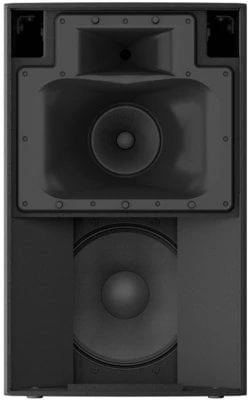

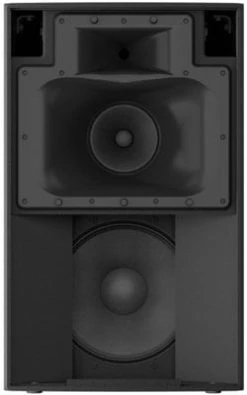

Three-way, bi-amped powered, bass-reflex type loudspeaker from Yamaha DZR series. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction. DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. It is equipped with a 15″ cone LF driver with neodymium magnet and 3“ voice coil. 8″ Cone MF driver with ferrite magnet and 1,5“ voice coil. 1″ throat compression HF driver with neodymium magnet, 2“ voice coil and titanium diaphragm. Power rating: Dynamic: 2000 W. Continuous: 1300 W. Maximum output level: 143 dB SPL. Amplifier class: Class-D. Frequency range: 31 Hz – 20 kHz. Crossover: 700 Hz (FIR-X), 2,5 kHz (Passive). Sampling frequency rate: 96 kHz and FIR Filter. A/D D/A Converters: 96 kHz AD/DA. Analog IN: XLR/6,3 mm jack combo x 2, Line level (Maximum +24 dBu), Input impedance 20 kOhm, Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT. USB 2.0 Host 5 V 500 mA for USB memory DATA storage/load. Handle: 2 x side aluminium die-cast. Dimensions: 550 x 897 x 520 mm. Weight: 41,6 kg. Colour: Black
