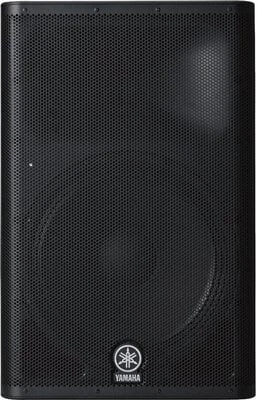

Yamaha DXR 8 MKII Active Loudspeaker

Active 2-way 8″ speaker from Yamaha DXR mkII series. The most compact of the DXR mkII Series speakers, the DXR8 mkII makes the most of its 1100 W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 mkII subwoofer gives you an ultra-compact high-power PA system.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1,75” Neodymium HF compression driver for extremely clear voice reproduction and musicality.

Whether for fixed applications or mobile live performances – whatever direction you want to take your sound – the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity.

• Material: ABS, matte finish
• Speaker type: 8″ 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10 dB): 57 Hz – 20 kHz
• Speakers: LF: Diameter: 8″ cone, Voice Coil: 2″, Magnet: Ferrite. HF: Diaphragm: 1,75″, Type: 1″ throat compression driver, Magnet: Neodymium
• Crossover: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1100 W (LF: 950 W HF: 150 W) / Continuous: 700 W (LF: 600 W HF: 100 W)
• Maximum output level (1 m; on axis): 130 dB SPL
• I/O connectors: XLR, 6,3 mm jack, RCA
• Processors: D-Contour: FOH/MAIN, MONITOR, OFF
• Power requirements: 100 V – 240 V, 50 Hz/60 Hz
• Power consumption: 90 W
• Flying and mounting hardware: Top x 2, Rear x 1 (Fits for M8 x 15 mm eyebolts)
• Pole socket: 35 mm with 2-way features (0 or 7 degrees)
• Dimensions: 280 x 458 x 280 mm
• Weight: 12,80 kg
• Colour: Black
