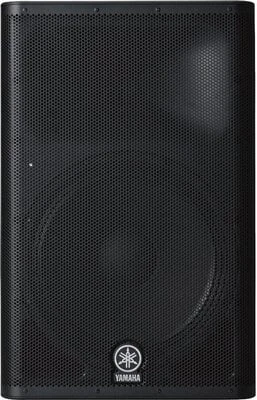

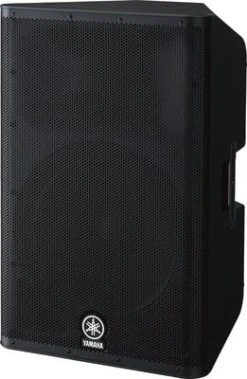

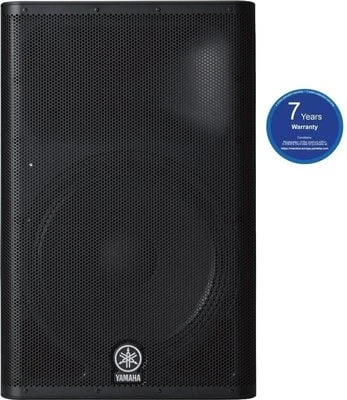

Yamaha DXR 15 MKII Active Loudspeaker

Active 2-way 15″ speaker from Yamaha DXR mkII series. The DXR15 mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha’s cutting edge technologies. Throw in some D-CONTOUR and you’ll feel like you’re using a subwoofer.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1,75” Neodymium HF compression driver for extremely clear voice reproduction and musicality.

Whether for fixed applications or mobile live performances – whatever direction you want to take your sound – the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity.

• Material: ABS, matte finish
• Speaker type: 15″ 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10 dB): 49 Hz – 20 kHz
• Speakers: LF: Diameter: 15″ cone, Voice Coil: 2,5″, Magnet: Ferrite. HF: Diaphragm: 1,75″, Type: 1″ throat compression driver, Magnet: Neodymium
• Crossover: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1100 W (LF: 950 W HF: 150 W) / Continuous: 700 W (LF: 600 W HF: 100 W)
• Maximum output level (1 m; on axis): 134 dB SPL

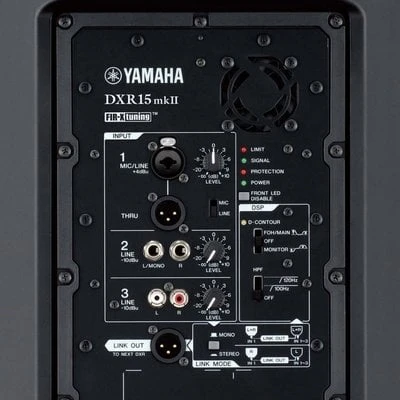

• I/O connectors: XLR, 6,3 mm jack, RCA
• Processors: D-Contour: FOH/MAIN, MONITOR, OFF
• Power requirements: 100 V – 240 V, 50 Hz/60 Hz
• Power consumption: 110 W
• Flying and mounting hardware: Top x 2, Rear x 1 (Fits for M10 x 18 mm eyebolts)
• Pole socket: 35 mm with 2-way features (0 or 7 degrees)
• Dimensions: 445 x 700 x 380 mm
• Weight: 21,80 kg
• Colour: Black
