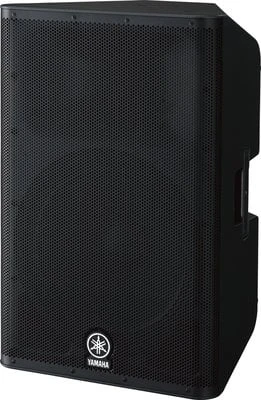

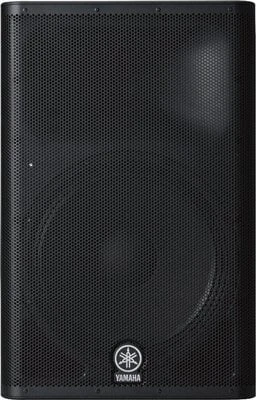

Yamaha DXR 10 MKII Active Loudspeaker

Active 2-way 10″ speaker from Yamaha DXR mkII series. Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10 mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact PA system – the DXR10 mkII delivers without compromising sound quality and power.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1,75” Neodymium HF compression driver for extremely clear voice reproduction and musicality.

Whether for fixed applications or mobile live performances – whatever direction you want to take your sound – the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity.

• Material: ABS, matte finish
• Speaker type: 10″ 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10 dB): 56 Hz – 20 kHz
• Speakers: LF: Diameter: 10″ cone, Voice Coil: 2″, Magnet: Ferrite. HF: Diaphragm: 1,75″, Type: 1″ throat compression driver, Magnet: Neodymium
• Crossover: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1100 W (LF: 950 W HF: 150 W) / Continuous: 700 W (LF: 600 W HF: 100 W)
• Maximum output level (1 m; on axis): 132 dB SPL
• I/O connectors: XLR, 6,3 mm jack, RCA
• Processors: D-Contour: FOH/MAIN, MONITOR, OFF
• Power requirements: 100 V – 240 V, 50 Hz/60 Hz
• Power consumption: 90 W
• Flying and mounting hardware: Top x 2, Rear x 1 (Fits for M8 x 15 mm eyebolts)
• Pole socket: 35 mm with 2-way features (0 or 7 degrees)
• Dimensions: 305 x 502 x 310 mm
• Weight: 13,90 kg
• Colour: Black
