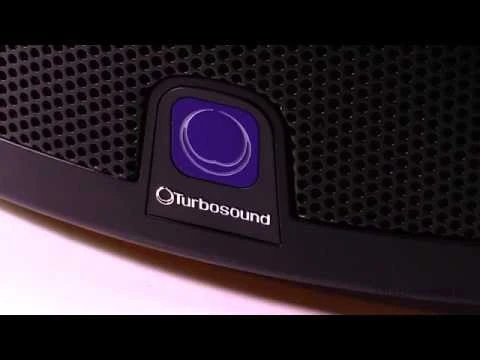

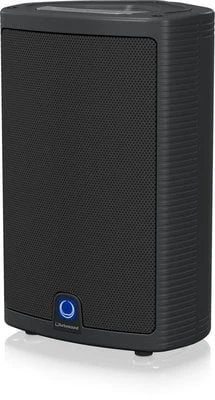

Turbosound Milan M10 Active Loudspeaker

Full range 2 way 10″ powered loudspeaker with Klark Teknik DSP technology for portable PA and installation applications.

The 600-Watt full range MILAN M10 is a portable 10″ two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

Designed for both portable and permanent install applications, the M10’s discrete inputs are each equipped with balanced, combination 6,3 mm jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

• Speakers: 1 x 10″ LF driver, 1 x 1″ HF driver
• Mic/Line input: 6,3 mm jack/XLR
• Mix out: XLR
• Controls: Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
• Frequency range: 55 Hz–18 kHz ±3 dB, 50 Hz–20 kHz -10 dB
• Max SPL (peak): 126 dB
• Equalisation: Bass: ±6 dB @ 80 Hz, Treble: ±6 dB @ 12 kHz
• Power LED: Blue
• Signal LED: Green
• Limit LED: Red
• Clip LED: Red
• Amplifier Protection
• Power: LF: 500 W, HF: 100 W
• Input sensitivity: Mic: -32 dBu, Line: -2 dBu
• Input Impedance: Mic: 560 Ohm unbalanced, 1 kOhm balanced. Line: 20 kOhm unbalanced, 40 kOhm balanced
• Power supply: 220–240 V~, T 3.15 A H 250 V
• Power [email protected] 1/8 max power: 80 W
• Dimensions: 522 x 329 x 294 mm
• Weight: 13,3 kg
• Colour: Black
