Samson RS112A Active Loudspeaker

The RS112A 400W 2-Way Active Loudspeaker brings powerful, versatile and convenient sound reinforcement to a wide range of audio applications. Easy to transport and set up, this powerful speaker features an onboard mixer with mic/line input options, Bluetooth® audio streaming, plus a USB Wireless port for connecting Samson XPD Series wireless microphone systems.

Power and Drive(rs)
With a bi-amped design (separate amplifiers for high and low frequencies), the RS112A offers greater efficiency, more accurate sound and an impressive 400 watts of power. This power is realized through a 12″ extended range woofer with a large 2″ voice coil that provides excellent coverage and clarity, while keeping the low-end tight and punchy. The 1″ tweeter adds smooth, crisp highs to produce a balanced audio image.

Mix Matters

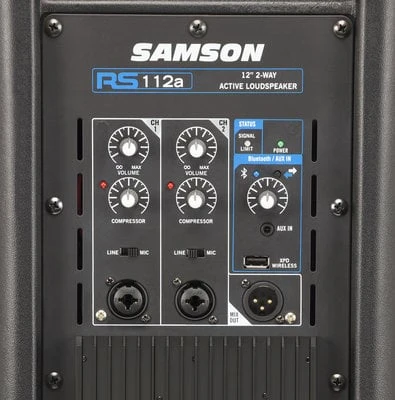

The RS112A speaker features an onboard mixer equipped with two selectable mic/line XLR–1/4” combo input channels with variable compressor controls. An additional channel offers an 1/8″ line level input, Bluetooth connectivity and a USB Wireless port for use with Samson XPD wireless microphone systems (sold separately). The RS112A speaker includes an XLR Mix output for daisy chaining additional speakers to expand your sound system.

Protection and Placement

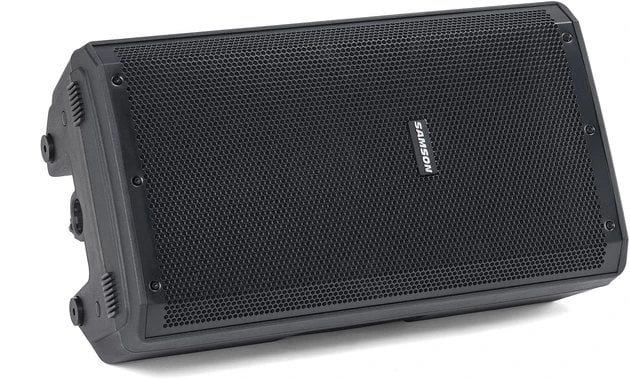

In addition to its high-impact polypropylene cabinet construction, the RS112A is fitted with a full metal grille that provides maximum component protection. The cabinet offers horizontal/angled floor monitor positioning, a 1 3/8″ pole mount for stand placement and four M10 fly points for permanent speaker installation. In addition, the RS112A includes convenient top and side carry handles for easy transport.

• 2-way active loudspeaker
• 400 watts Peak/200 watts RMS of power
• 12″ extended range low frequency driver with 2″ voice coil
• 1″ high frequency driver
• Two selectable Mic/Line XLR-1/4″ combo inputs with variable compressor controls
• Bluetooth connectivity to connect wireless music sources
• 1/8″ (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
• XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
• Independent volume controls on all channels
• XLR Mix output for daisy chaining additional speakers
• Signal/Limit indicator
• Solid polypropylene enclosure with impact resistant design
• Three large ergonomic carry handles
• Integrated 1 3/8″ speaker stand mount
• Four M10 fly points
• Horizontal/Angled floor monitor positioning
• Full perforated metal grille protects all speaker components

Specifications

• Output Power @ 1kHz: 400W Peak, 200W RMS
• LF Driver: 12″ woofer, 2″ voice coil
• HF Driver: 1″ tweeter
• Frequency Response: 55Hz–20kHz
• Max. SPL (1M): 115dB
• Inputs: 2x XLR-1/4″ combo Mic/Line, 1/8″ (3.5mm) Aux, XPD Wireless
• Outputs: XLR Mix output
• Compressor: Variable (Threshold/Ratio)
• Bluetooth: Bluetooth 4.0, A2DP
• Construction: Polypropylene, metal grille, 3x handles
• Mounting Method: 1 3/8″ pole mount, monitor angles
• Product Dimensions: 26″ (660mm) x 12.2″ (310mm) x 15″ (381mm)
• Product Weight: 35lb (16kg)
