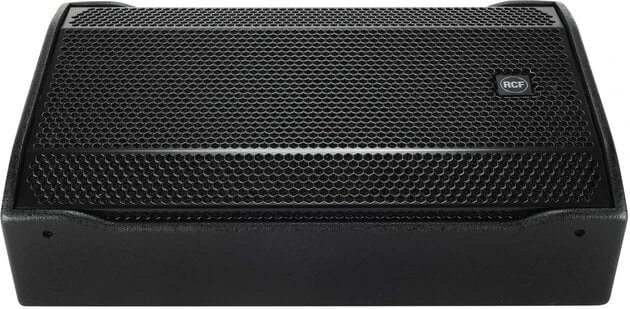

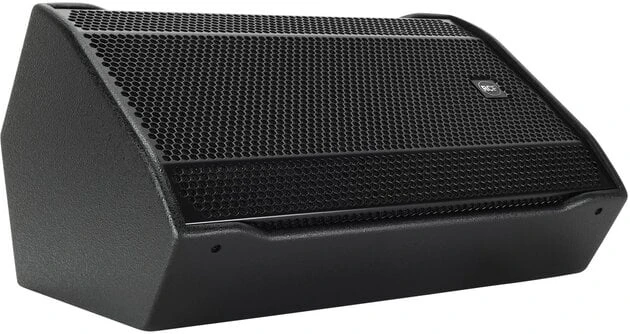

RCF ST 12-SMA II Active Stage Monitor

Compact active ST 12-SMA IIv stage monitor with a power of 1200 watts. It brings a professional solution for a professional sound reinforcement up to 130 dB and low distortion with unmatched reliability. This monitor offers the deep and accurate reproduction of the lower frequency range, while also providing very open and natural sound with extreme precision in high-frequency reproduction. The ST 12-SMA II model has a solid machined aluminum construction, which not only serves as protection during transportation, but also helps to evenly dissipate heat. The upper cabinet is made of high-quality birch plywood with black textured polyurethane.

Technical specs:

Acoustical specifications

• FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 129 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 60°

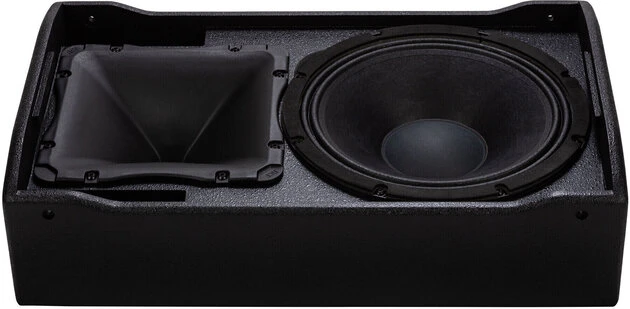

Transducers

• COMPRESSION DRIVER: 1 x 1.0”, 1.4” v.c
• WOOFER: 12”, 2.5” v.c

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES: 1400 Hz
• PROTECTIONS: RMS, HF
• LIMITER: Soft Limiter

Power section

• TOTAL POWER: 1200 W Peak, 600 W RMS
• HIGH FREQUENCIES: 800 W Peak, 400 W RMS
• LOW FREQUENCIES: 400 W Peak, 200 W RMS
• COOLING: Convection
• CONNECTIONS: VDE

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: Baltic birch plywood
• HANDLES: 1 side
• POLE MOUNT/CAP: Yes
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 318 mm / 12.52 inches
• WIDTH: 594 mm / 23.39 inches
• DEPTH: 400 mm / 15.75 inches
• WEIGHT: 17.3 kg / 38.14 lbs

Shipping informations

• PACKAGE HEIGHT: 604 mm / 23.78 inches
• PACKAGE WIDTH: 352 mm / 13.86 inches
• PACKAGE DEPTH: 412 mm / 16.22 inches
• PACKAGE WEIGHT: 19 kg / 41.89 lbs
