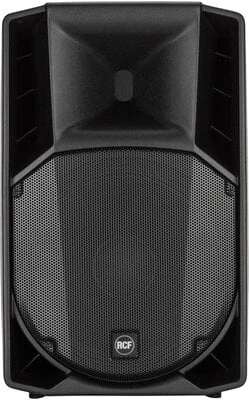

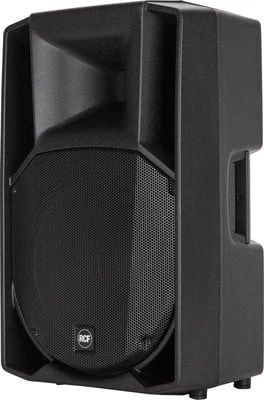

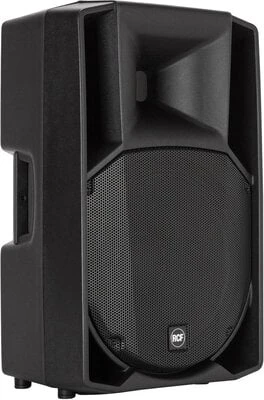

RCF ART 735-A MK4 Active Loudspeaker

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0″ voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15″ neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Features
132 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4″ Titanium Compression Driver, 3.0″ v.c. Neodimium
15″ Woofer
800 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology

Specs
Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:132 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°

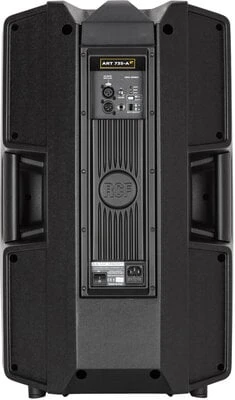

Input signal:Bal / unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
Height:708 / 27.87 mm/inch
Width:437 / 17.2 mm/inch
Depth:389 / 15.31 mm/inch
Net Weight:21.4 / 47.18 kg/lbs
