Monacor SAM-200D Spare Part For Loudspeaker

Active subwoofer module for self-built subwoofer systems. Due to state-of-the-art technology in the digital D class, the digital active subwoofer module provide a powerful bass reproduction. The component feature a high power efficiency and provide an energy-saving operation. The lightweight design of these model ensures a low total weight of the speaker system. It offers class D technology, 200 W at 4 Ohm and integrated bass boost of approx. 3 dB at 40 Hz.

Specifications:

• Peak output power: 280 W
• Power rating at 4 Ohm: 200 W
• Power rating at 8 Ohm: 100 W
• Channels: 1
• Inputs: max 7 V/20 kOhm
• Attenuation factor: 26,6
• Frequency range: 20 Hz – (variable 40-200 Hz)
• S/N ratio: > 70 dB
• THD: < 0,100%
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 330 VA
• Power consumption, standby: < 0,500 W
• Admissions ambient temperature: 0-40° C

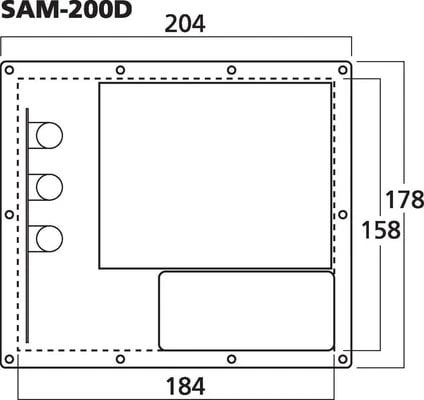

• Dimensions: 178 x 204 x 80 mm
• Weight: 1kg
• Connections: 1x RCA (line in), 1x RCA (line out)
