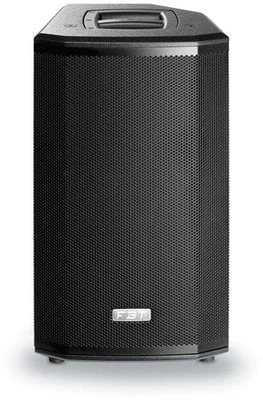

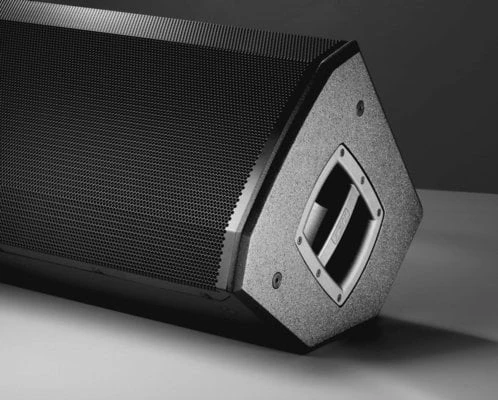

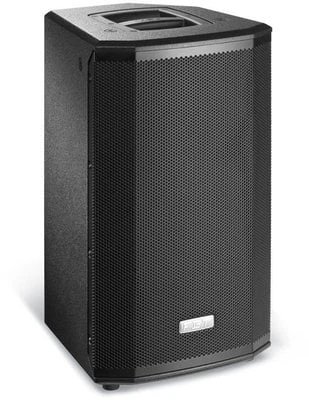

FBT Ventis 110A Active Loudspeaker

Versatile two-way loudspeaker with bass reflex design from VENTIS series that has been designed to meet the highest standards in both performance and aesthetic appeal. It is equipped with 10” long excursion woofer with 2” voice coil and 1” B&C HF compression driver with 1.4“ voice coil. They are powered by a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H/AB design. Finally, on-board DSP is both user friendly and powerful and offers a total of 6 pre-optimised settings (Original/Live, Vocal, DJ, Touring, Loudness, Warm), plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 ms. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance. The control panel features balanced XLR/Jack input, XLR LINK OUT, two Volume controls and RCA stereo input. The speaker’s enclosure is made of 15mm thick birch plywood with scratch resistant coating and internal bracing. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horn ensures accurate coverage. Six M10 suspension points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road, the loudspeaker includes aluminium handles with rubber inserts, a 35mm pole-mount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor. Frequency response: 58 Hz-20 kHz. Maximum SPL: 131 dB. Dimensions: 329 x 575 x 325 mm. Weight: 15.6 kg.
