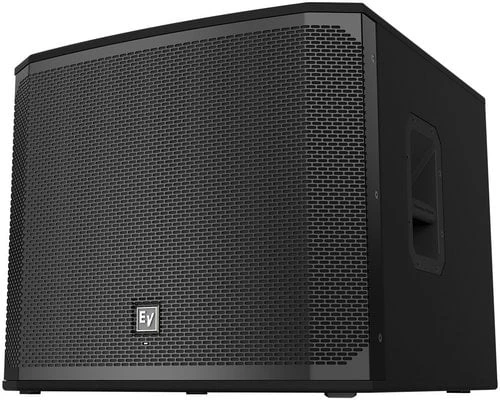

Electro-Voice Electro Voice EKX-18SP Active Subwoofer

Active bass speaker system from EKX series. It is fitted with 18″ speaker and High-efficiency 1300 W Class D power amplifier that delivers up to 134 dB peak SPL. System has frequency response 40 Hz – 150 Hz (-3 dB) and 35 Hz – 180 Hz (-10dB), Cardioid Control Technology (allows output to be steered towards the audience with up to 35 dB reduction), Intelligent thermal management with fan that has variable speeds and is controlled by several temperature sensors, QuickSmartDSP procesing with single-knob user interface, and intuitive menu navigation via LCD. Connection: 2 XLR/TRS combo jacks and 2 XLR link outputs. The body of the speaker is made of 15 mm plywood with surface resistant finish EVCoat with grill from 18 AWG steel with powdercoat. Dimensions: 520 mm x 606 mm x 612 mm. Weight: 32,8 kg. Colour: Black.

Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL: 134 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption: 1.8 A Current rating is 1/8 power
Power Rating: 1300 W
Frequency Response (-3 dB): 40 Hz – 150 Hz Half Space Measurement
Frequency Response (-10 dB): 35 Hz – 180 Hz Half Space Measurement
LF Transducer: EVS-18C 457 mm (18 in)

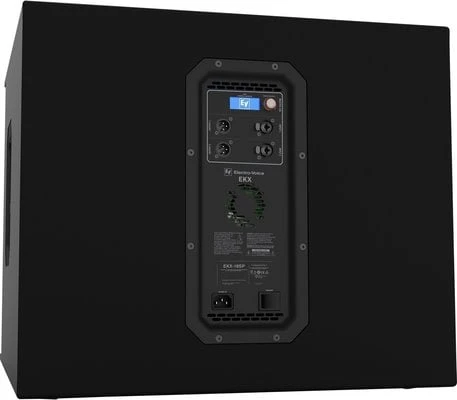

Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
