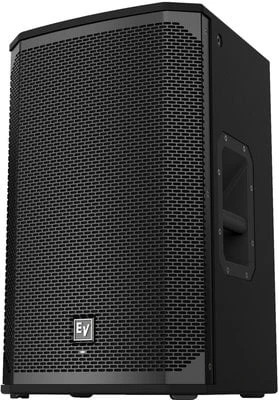

Two-way active speaker system from EKX series. It is equipped with high-efficiency 1500 W Class D power amplifier that delivers up to 132 dB peak SPL via high-sensitivity transducers designed and engineered by EV. It has a frequency range of 60 Hz – 18 kHz (-3dB) and 50 Hz – 20 kHz (-10 dB), the coverage angle of 90° x 60°, EV-patented Signal Synchronized Transducers, Intelligent thermal management with fan that has variable speeds and is controlled by several temperature sensors, QuickSmartDSP single-knob user interface, and intuitive menu navigation via LCD. The body of the speaker is made of 15 mm plywood with internal reinforcement and surface resistant finish EVCoat. The device has eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles. Dimensions: 607 mm x 375 mm x 356 mm. Weight: 18.8 kg. Color: black.
Maximum SPL: 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption: 1.8 A Current rating is 1/8 power
Power Rating: 1500 W
Frequency Response (-3 dB): 60 Hz – 18 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-10 dB): 50 Hz – 20 kHz Hz Full space measurement using the music DSP preset.
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 60 °
LF Transducer: EVS-12M 300 mm (12 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.7 k Hz

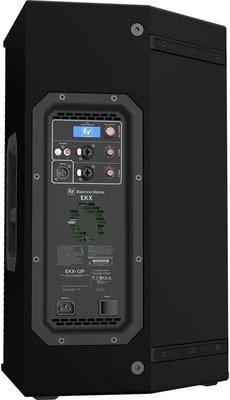

Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Suspension: (8) M10 threaded mounting pointsÂ
