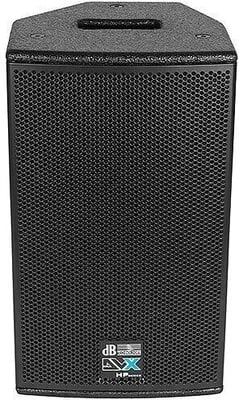

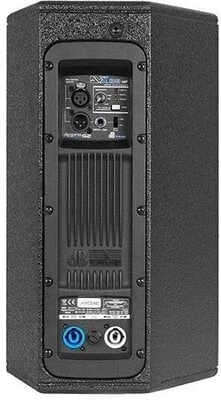

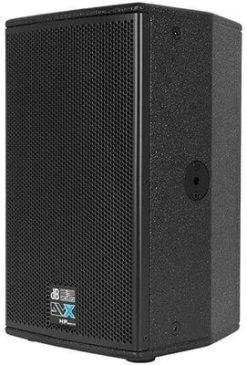

DB Technologies DVX D8 HP Active Loudspeaker

A powerful active two-way DVX-D8-HP speaker with a high-quality 8-inch woofer and a 1-inch compression driver with rotatable CD horn. This speaker box offers excellent sound properties for any type of music and also guarantees an excellent speech intelligibility.

Technical Data

• Speaker Type: 2-Way Active Speaker
• Frequency Response [-10dB]: 75 – 20.000 Hz
• Frequency Response [ /- 3dB]: 100 – 19.000 Hz
• Max SPL: 125 dB
• HF: 1″
• Voice Coil HF: Titanium 1.7 “
• Directivity: 90×70 °
• Horn: CD Horn Aluminium
• Rotatable Horn: YES
• LF: 8 “
• Voice Coil LF: 2 “

Amplifier:

• Amp Technology: Digipro® G2
• Amp Class: Class D
• Power RMS: 400 W
• Peak Power: 800 W
• Cooling: Convection

Processor:

• Controller: DSP 24 Bit/48 kHz
• System Presets: Flat, Monitor
• Limiter: RMS, Peak. Thermal, Multiband
• Crossover Frequency MF-HF: 1800 Hz
• Slope MF-HF: 24 dB/Octave

Mechanics:

• Housing: Multiplex plywood
• Housing Design: Multifunctional
• Angles Up: Monitor use 45 °
• Rigging Points: 6x M8, 2x 10mm Quick Release for DTF-bracket

• Width: 250 mm (10 in)
• Height: 425 mm (17 in)
• Depth: 260 mm (10.4 in)
• Weight: 9.7 kg (21.38 lbs)
