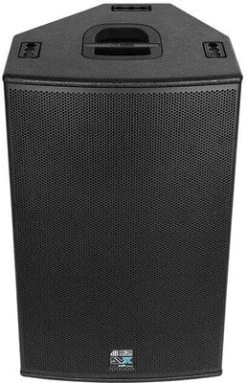

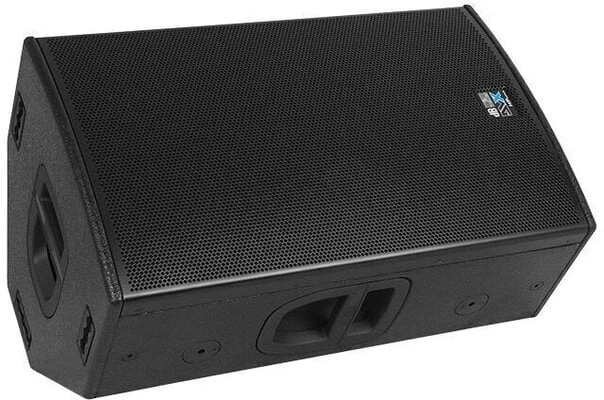

DB Technologies DVX D15 HP Active Loudspeaker

A two-way system active DVX D15 HP system serves as a fullrange FOH speaker or a powerful drum monitor. The DVX D15 HP delivers a strong, striking bass response. The integrated powerful digipro G2 digital power amp ensures high sound pressure levels, extremely dynamic response as well as pure low-end response. Thanks to the high-quality speakers, it creates truly top-notch sound performance with maximum reliability for a unique music experience.

Technical Data

• Speaker Type: 2-Way Active Speaker
• Frequency Response [-10dB]49 – 20.000 Hz
• Frequency Response [+/- 3dB]57 – 19.000 Hz
• Max SPL: 132 dB
• HF: 1.4 “
• Voice Coil HF: Titanium 2.5 “
• Directivity: 60×40 °
• HornCD: Horn Aluminium
• Rotatable Horn: YES
• LF: 15 “
• Voice Coil: LF3.5 “

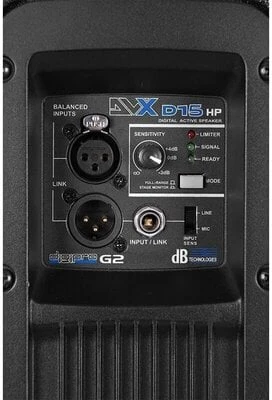

• Amp Technology: Digipro® G2
• Amp Class: Class D
• Power RMS: 700 W
• Peak Power: 1400 W
• Cooling: Convection
• Controller: DSP 24 Bit/48 kHz
• System Presets: FOH, Monitor
• Limiter: RMS, Peak. Thermal, Multiband
• Crossover Frequency MF-HF: 1320 Hz
• Slope MF-HF: 24 dB/Octave
• Housing: Multiplex plywood
• Housing Design: Multifunctional
• Angles Up: Monitor use 45 °
• Rigging Points: 6x M10
•                            4x Quick-Relase Pins
• Flytracks: 3x on top, 3x on bottom
• Width: 430 mm (17.2 in)
• Height: 690 mm (27.6 in)
• Depth: 450 mm (18 in)
• Weight: 30.3 kg (66.8 lbs)
