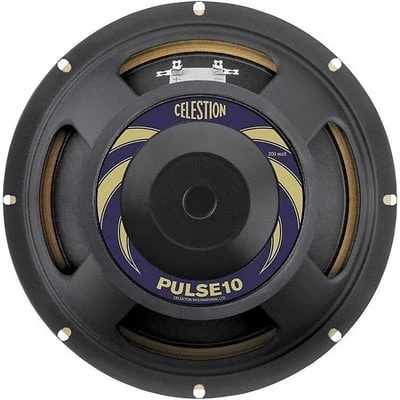

Celestion Pulse 10 8ohm Guitar / Bass Speakers

With its robust steel-chassis, PULSE10, provides a rock-solid bass performancewhether alone in a single speaker combo, in a 4×10 or even an 8×10 cab. Expecta tight, punchy low end with a warm mid-range that’s full of presence, bringingfocus and articulation to your playing. This heavy-duty driver truly delivers bassyou can feel as well as hear.

General Specifications

Nominal diameter – 10″, 254mm
Power rating – 200W
Nominal impedance – 8Ω
Sensitivity – 94dB
Magnet type – Ferrite
Voice coil diameter – 2″, 50.8mm
Coil material – Copper
Cone material – Kevlar loaded paper
Former material – Polyimide
Surround material – Cloth-sealed
Frequency range – 45-3500Hz
Xmax – 0.15″, 4mm
Gap depth – 0.31″, 8mm
Voice coil winding width – 0.62″, 16mm

Small Signal Parameters

D – 0.21m/8.3in
Fs – 68Hz
Mms – 32.9g/1.16oz
Qms – 2.54
Qes – 0.53
Mmd – 29.26g/1.03oz
Qts – 0.44
Re – 6.03Ω
Vas – 25.8lt/0.91cu.ft.
BI – 12.88Tm
Cms – 0.15mm/N
Rms – 5.79kg/s
Le (at 1kHz) – 0.92mH

Mounting Information

Cut-out diameter – 9″, 229mm
Diameter – 10.1″, 256mm
Mounting slot dimensions – 0.24×0.31″, 6x8mm Ø
Mounting slot PCD – 9.6″, 245mm
Number of mounting slots – 4
Overall depth – 4.3″, 110mm
Unit weight – 6.6lb, 3kg
