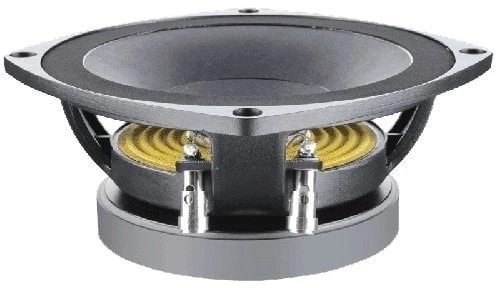

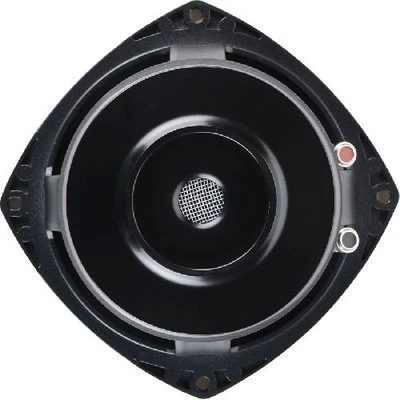

Celestion CF0617M

6.5″ dedicated mid-range driver delivering 96dB sensitivity and 200Wrms;(AES standard) power handling. FEA optimised magnet assembly and suspension delivers highly symmetrical cone movement leading to exceptionally low harmonic distortion. Copper sleeved pole reduces inductive rise for improved HF performance. Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression. Space efficient chassis profile.

Specifications

• Driver Dimensions: 6.5” / 165mm
• Power Rating: 200W RMS
• Nominal Impedance: 8 Ohms
• Sensitivity: 96dB
• Frequency Range: 300Hz – 7kHz
• Former Material: Glass Fibre
• Cone Material: Kevlar Loaded Paper
• Surround Material: Temperature Resistant Foam
• Suspension: Single
• Voice Coil Diameter: 1.75” / 45mm
• Voice Coil Material: Edgewound Copper-Clad Aluminium
• Chassis Type: Cast Aluminium
• Magnet Type: Ferrite
• Magnet Weight: 0.6kg
• Dimensions: 190mm x 190mm x 110mm / 7.5” x 7.5” x 4.3”

Mounting Information

• Overall Diameter: 189mm / 7.44”
• Overall Depth: 78.5mm / 3.1”
• Cut-Out Diameter: 150mm / 5.9”
• Mounting Slot Dimensions: 7.5mm x 5.5mm / 0.3” x 0.22”
• Number of Mounting Slots: 4
• Mounting PCD Range: 173mm – 175mm / 6.81” – 6.89”
