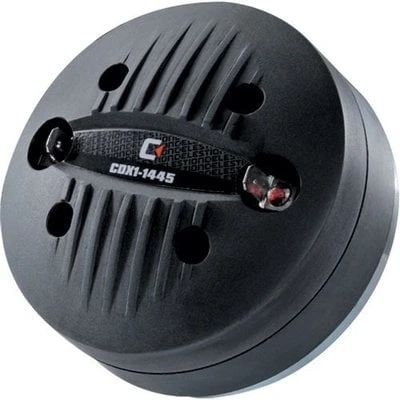

Celestion CDX1-1445-8 Tweeter

Pressure driver for loudspeakers with ferrite magnet. Power 20 W RMS, resistance 8/16 Ohms, sensitivity 106dB, frequency range: 1500-20.000Hz, 1.4 “copper-coated aluminum coil. Lightweight construction. Suitable for two and three-band systems

General Specifications

Power rating…………………..20Wrms
Nominal impedance…………8/16Ω
Frequency range……………1500-20,000Hz
Sensitivity………………………106dB
Recommended min. crossover (12dB/oct) 2200Hz
Voice coil diameter………….35mm
Voice coil material…………..Copper clad aluminium
Magnet type…………………..Ferrite
Diaphragm material…………PETP film
Surround material…………..PETP film

Mounting Information

Overall width………………….90mm
Overall depth…………………52mm
Fitting……………………………Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit…………………….25mm
Unit weight…………………….1kg
