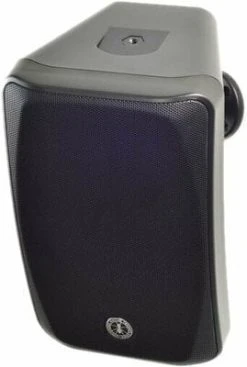

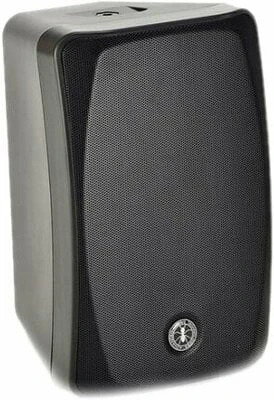

ANT BBM 5 Active Loudspeaker

BBM 5 is a compact, easy solution for small portable applications, but also for unobtrusive installations; the cabinet can be easily fixed on wall thanks to custom accessories BBM WB5U (U bracket). Alternatively, the kit BBM-358 Y allows to fix the cabinet on walls or ceiling and modify orientation and tilt. The BBM SA-50 kit is also available specifically for tripod mounting in small portable applications. The speaker is equipped with 2 INPUT channels with separate level management: CH 1 mic/line (selectable with switch button) with jack and XLR-F connection and CH 2 with minijack connection. The OUT channel (jack) allows link to another BBM speaker. BBM’s great versatility is completed by a clear, undistorted sound performance even at high sound pressure levels (up to 109 dB): the CLIP led indicates when the signal get distorted. In that case you only need to turn down levels of active IN channels.

• System type: Vented enclosure, 2-way
• LF: 5″” custom speaker – 1″” V.C.
• HF: 1″” neodynium dome tweeter
• Amplification Type (LF+HF): Class D + Class A/B
• Peak Power (LF+HF): 100W
• Frequency response (-10dB): 100Hz-20kHz
• SPL – MAX: 109 dB

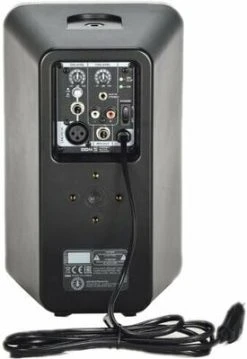

• I/O connectors: CH1 MIC IN: XLR-F, CH1 LINE IN: 6,35 mm (1/4″) jack, CH2 IN: 3,5 mm. mini-jack and 2 RCA, LINE OUT: 6,35 mm (1/4″) jack
• Controls: CH1 LEVEL, LINE/MIC switch, CH2 LEVEL.
• Power supply: 220-240V ~ 50-60Hz
• Fuse: T800mA L 250 V
• Power Consumption: 70W
• Suspension system: 2 M6 – top/under for U bracket mouth, 4 M5 – rear for Y and SA brackets
• Materials: Injection-Molded ABS cabinet, Perforated Steel Grille
• Dimensions (W x H x D): 6.71″(170.5mm) x 10.7″(272mm) x6.76″(171.8mm)

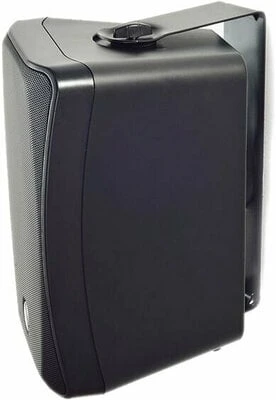

• Brackets kit for wall mounting: BBM-WB5U

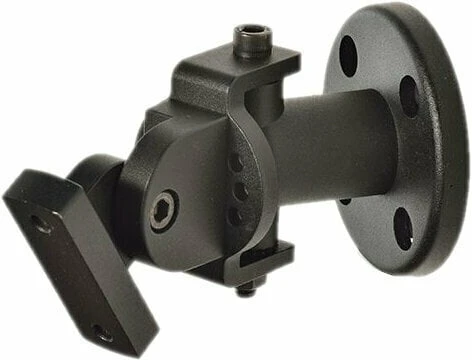

• Brackets rotation and tilting kit for wall/ceiling mounting: BBM-358Y
• Tripod mount kit: BBM-SA50
