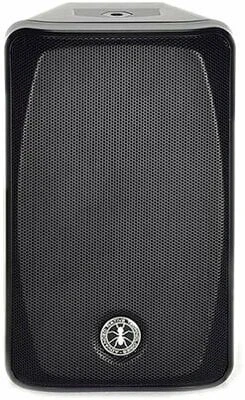

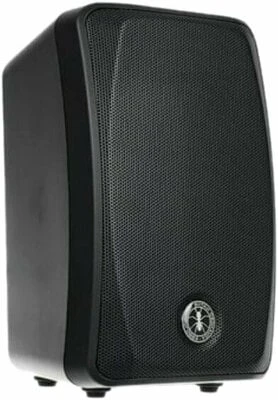

ANT BBM 3 Active Loudspeaker

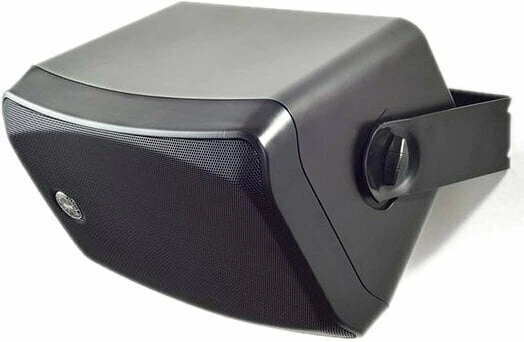

BBM 3 is the most compact 2-way speaker in ANT family. A pretty easy solution for small portable applications, BBM 3 also acts as unobtrusive installation; the cabinet can be easily fixed on wall thanks to custom accessories BBM WB3U (U bracket). Alternatively, the kit BBM-358 Y allows to fix the cabinet on walls or ceiling and modify orientation and tilt. The BBM SA-30 kit is also available specifically for tripod mounting in small portable applications. The speaker is equipped with 2 INPUT channels with separate level management: CH 1 mic/line (selectable with switch button) with jack connection and CH 2 with minijack connection. The OUT channel (jack) allows link to another BBM speaker. BBM’s great versatility is completed by a clear, undistorted sound performance even at high sound pressure levels (up to 103 dB): the CLIP led indicates when the signal get distorted. In that case you only need to turn down levels of active IN channels.

• System type: Vented enclosure, 2-way
• LF: 3.5″ custom speaker – 1″ V.C.
• HF: 0.8″ neodynium dome tweeter
• Amplification Type (LF+HF): Class D + Class A/B
• Peak Power (LF+HF): 80W
• Frequency response (-10dB): 140Hz-20kHz
• SPL – MAX: 103 dB

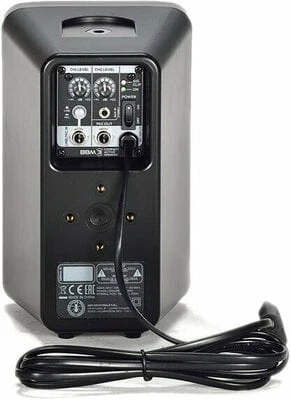

• I/O connectors: CH1 MIC/LINE: 6,35 mm (1/4″) jack, CH2 IN: 3,5 mm mini-jack, LINE OUT: 6,35 mm (1/4″) jack
• Controls: CH1 LEVEL, LINE/MIC switch, CH2 LEVEL.
• Power supply: 220-240V ~ 50-60Hz
• Fuse: T800mA L 250 V
• Power Consumption: 40W
• Suspension system: 2 M6 – top/under for U bracket mouth, 4 M5 – rear for Y and SA brackets
• Materials: Injection-Molded ABS cabinet, Perforated Steel Grille
• Dimensions (W x H x D): 5.29″(134.3mm) x 8.68″(220.4mm) x5.37″(136.4mm)
• Brackets kit for wall mounting: BBM-WB3U

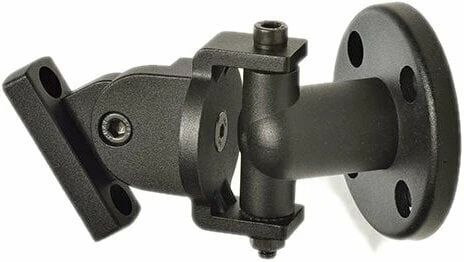

• Brackets rotation and tilting kit for wall/ceiling mounting: BBM-358Y
• Tripod mount kit: BBM-SA30
