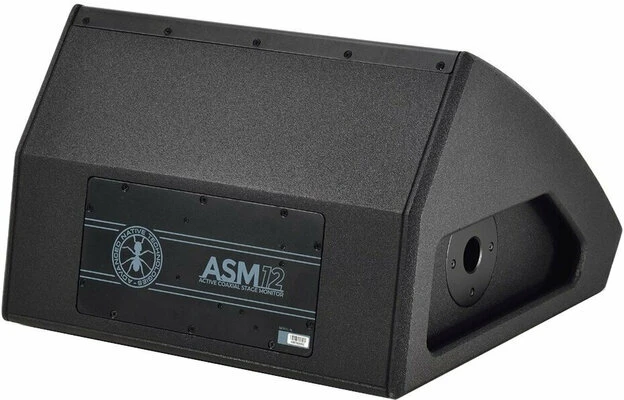

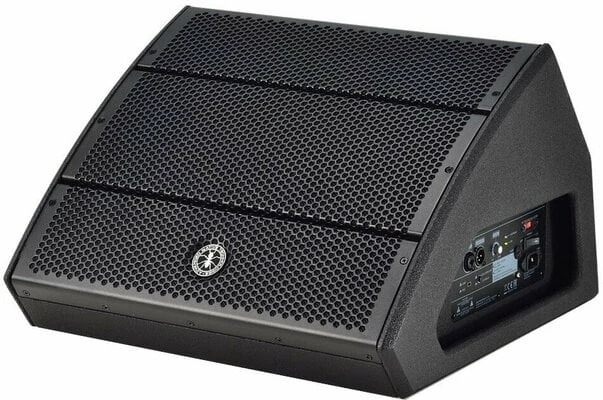

ANT ASM 12 Active Stage Monitor

ASM-12 is an active 2-way coaxial stage monitor with 12” woofer and 1” Compression Driver. Specially designed for an immediate use, ASM adapts to the needs of musicians of every kind. Thanks to the ultra-efficient acoustic design and intuitive on-board controls, ASM always guarantees a professional performance. The side panel is equipped with a COMBO MIC/LINE IN (with a mode selection switch), LINK OUT, output level control and EQ presets (live or playback) enabling users to set the best signal management for every situation. ASM stage monitor features an essential and contemporary design. The cabinet is equipped with side recessed handles. a 35 mm hole for a vertical installation on a tripod and is entirely covered with a highly resistant anti-scratch coating.

• System: 2-way vented box
• LF: Custom 12” Woofer, 2.5” VC
• HF: 1” compression driver, 1.35” VC
• Amplification: Class-D + Class-A/B
• Peak power (LF+HF): 600W
• Frequency response (+/-10dB): 65Hz-20kHz
• MAX SPL: 124dB
• DSP: 56Bit
• AD/DA conversion: 24Bit / 48kHz
• EQ: 2 Presets
• Input and output connectors: MIC/LINE COMBO (XLR-F + 2 x jack 6.35mm. 1/4”) LINK output: XLR-M
• Controls: LEVEL, LINE/MIC switch ON-PEAK/SIGN LEDs PRESET button
• Operating mains Fuse: 220-240V~ 50-60Hz T2A L 250V~ 110-120V~ 50-60Hz – T4A L 250V~
• Max power consumption: 300 W
• Cabinet: 2 recessed handles Pole mount Ø 35mm. hole
• Cabinet material: 15mm plywood
• Cabinets finishing: Anti-scratch paint with high mechanical resistance
• Dimensions (W x H x D)450 x 338 x 510 mm
